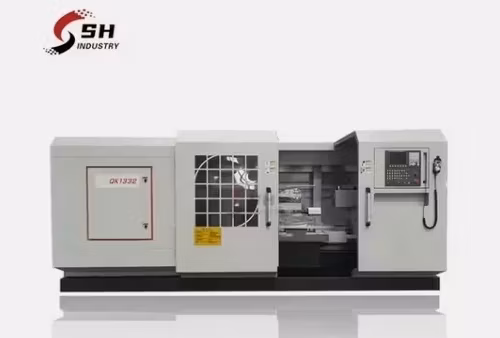

CNC Threading Machine (Heavy Duty Pipe Processing Lathe QK1338)

Basic Info

Model NO.	QK1338
Automatic Grade	Automatic
Setting Mode	Floor-type
Precision	High Precision
Certification	CE, ISO 9001
Condition	New
Bed Width	755mm
Swing Over Bed	1000mm
Turning Length	1500 mm
Spindle Bore	390mm
X Axis Travel	500mm
Transport Package	Plywood Case
Specification	Cast Iron
Trademark	HOTON
Origin	China
HS Code	8458190000
Production Capacity	5 PCS/Month

Product Description

CNC PIPE THREADING LATHE FEATURES:
QK13 series of CNC pipe threading lathe is mainly used for processing inner and outer pipe thread, metric thread
and inch thread, and can also undertake various turning works such as turning inner and outer cylindrical surface,
conical surface and other revolution and end surface as general CNC lathes
SPECIFICATIONS:

SPECIFICATION OF YIMAKE LATHE MACHINE
ITEMS		UNIT	QK1338 CNC Pipe Lathe
Basic	Max. Dia. swing over bed	mm	Φ1000
	Max. Dia. swing over cross slide	mm	Φ610
	Distance between centers	mm	1500
	Range of machining thread	mm	Φ190-380
	Width of bed way	mm	755
	Main motor	kw	22
	Coolant pump motor	kw	0.125
Spindle	Spindle bore	mm	Φ390
	Spindle speed (frequency conversion)	r/min	3 steps: 10-60 / 60-100 / 100-200
Tool post	Number of tool stations	--	4
	Size of tool section	mm	40×40
Feed	Z axis servo motor	kw/Nm	GSK:2.3/15	Fanuc:2.5/20	Siemens:2.3/15
	X axis servo motor	kw/Nm	GSK:1.5/10	Fanuc:1.4/10.5	Siemens:1.5/10
	Z axis travel	mm	1250
	X axis travel	mm	500
	X/Z axis rapid traverse speed	mm/min	4000
	Number of feed and screw pitch	mm	0.001-40
Accuracy	Positioning accuracy	mm	0.020
	Repositioning accuracy	mm	0.010
CNC system	GSK	--	GSK980TDC
	Fanuc	--	Fanuc Oi Mate TD
	Siemens	--	Siemens 808D
Tailstock	Tailstock quill diameter	mm	Φ140
	Tailstock quill taper	mores	m6#
	Tailstock quill travel	mm	300
	Tailstock cross travel	mm	±25
Others	Dimension(L/W/H)	mm	5000×2100×2100
	Net weight (kg)	kg	12000
	Gross weight	kg	13500
Accessory	Tool post	1 set	4 position NC turret
	Chuck	2 set	Φ850 four-jaw electric chuck
	Center rest	--	negotiate if necessary
	Rear support bracket	--	negotiate if necessary
Package	Standard export package	1 set	Steel pallet iron frame and plywood box
