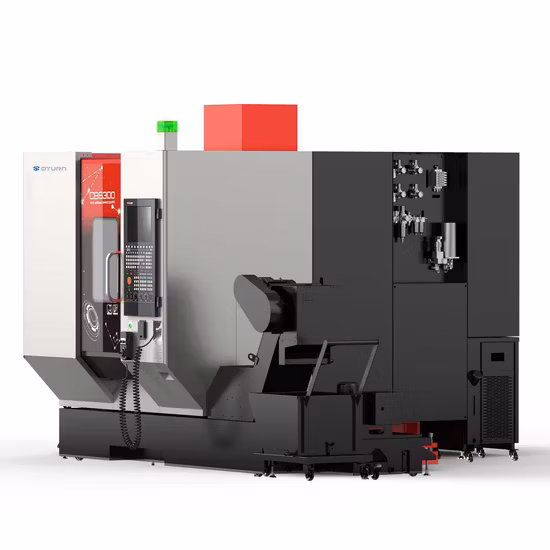

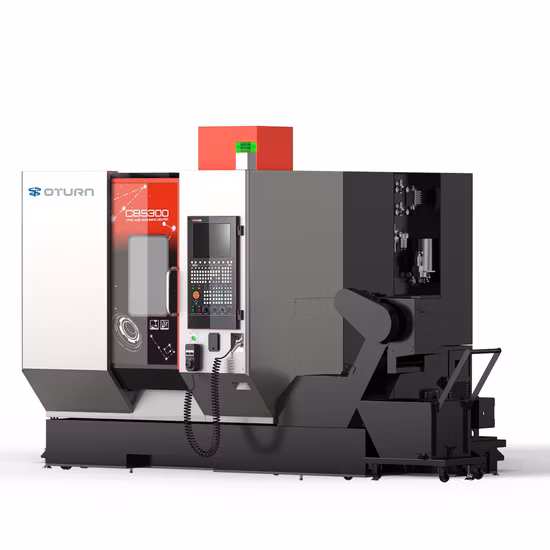

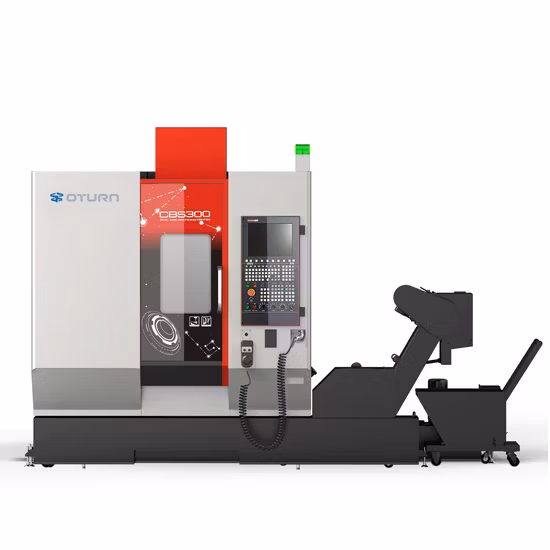

Heavy-Duty VMC Vertical Machining Center/CNC Milling Machine/ CNC Machine with Power V10

Basic Info

Model NO.	Power V10
Process Usage	Metal-Cutting CNC Machine Tools
Performance Classification	High-End CNC Machine Tools
Certification	CE, ISO 9001
Condition	New
Spindle	BT40-150/8000rpm
Magazine	24 tools/arm
Guideway size	55mm width
Machine weight	8200Kg
Transport Package	Seaworthy Package
Specification	3200x2500x2450
Trademark	Z-MaT
HS Code	8457101900
Production Capacity	5000 Sets Per Year

Packaging & Delivery

Package size per unit product 320.00cm * 250.00cm * 245.00cm Gross weight per unit product 8200.000kg

Product Description

VERTICAL MACHINING CENTER SERIES★: Precision linear guideways provide high speed rapids;★: Heavy-duty high quality castings provide a solid structure and rigid foundation;★: The casting bed and Y-shaped column design provide solid support to ensure ultimate dynamic accuracy;★: Direct drive spindle efficiently seperates the heat generated from the motor, which reduces deformation;★: High-performance magazine achieves quick tool change to minimize non-cutting time;★: Full enclosed guard cover and advanced sheet metal design;★: Fanuc 0i MF Plus/Siemens 828D/Mitsubishi M80A control systems;

TECHNICAL PARAMETERS

Item	Specifications	Unit	Power V10
Table	Table size	mm	1400x650
	T slot	N/A	18x5x100
	Max.load	Kg	1000
Travel	X/Y/Z travel	mm	1050/650/500
	Spindle nose to table	mm	120-720
	Spindle center to column	mm	670
	Guideway type	N/A	LM: X/Y/Z
Spindle	Spindle type	N/A	BT40-150
	Main servo motor	kW	15/11
	Spindle speed	rpm	8000, *12000
Feed&Magazine	X/Y/Z axis rapid traverse	m/min	30/30/30
	Cutting feed rate on X/Y/Z	mm/min	1-10000
	ATC capacity/type	N/A	24/Arm
	Max.weight of tool	Kg	8
Accuracy	Positioning	mm	0.008
	Repeatability	mm	0.005
Dimension&weight	Power capacity	kVA	25
	Dimension(LxWxH)	mm	3200x2500x2450
	Weight(about)	Kg	8200
